Tips in Mixing Electric Guitars using “Double Tracking” Technique

More samples and illustration are available at my music licensing page.

General guidelines on mixing guitar in your home studio

The method or approach on mixing guitar tracks strongly depends on the way how the guitars are recorded. For example if the guitars are recorded clean or does not have any effects.

Bear in mind that having a well recorded guitar is as important as mixing the guitar. So make sure that the recording quality of the guitar that you are going to mix is superb. There is no way you can fix a poorly recorded guitar in your mix. Refer to the following tutorials above for details on how to record your guitar properly for a variety of applications. In the following situations, you can implement double tracking methods the way it has been described in the previous section. But more details are provided below.

Situation#1: Mixing approach when the guitars are recorded dry

There are two ways on doing this. First, it is assumed that the producer would want the guitars clean in the mix. There are instances where the guitar needs to sound dry as possible (no guitar overdrive effects for example) in the mix. If this is the case, the following are mixing suggestions:

a.) Panning– rhythm guitars are panned usually in the left and right. Typically between 50% to 100% (in both LEFT and RIGHT). The more bass content in the rhythm guitars (such as a power chord riff), the closer it will be to 50%.

Higher notes such as an arpeggio guitar would be comfortable sitting between 75% to 100% for both left and right channel in your mix.

b.) Compression – you can read the following compression guidelines on guitar here.

c.) EQ -clean guitar needs some equalization to give the best sound in the mix. Assuming you are mixing a track with bass guitars and vocals.

-6dB low shelf =increase bass guitar clarity
-6dB 1000Hz Q=2.0 = increase vocals clarity
+3dB 5000Hz Q=3.0 =increase the brilliance of the guitar strings

In some cases, such as recording a cheap steel string guitars; the high ends are so harsh and contains too much treble. You might want to filter that with a high shelf:

-3dB high shelf at 3000Hz

You will be using a parametric equalizer in implementing these settings.

The other reasons why the record producer are recording clean guitars is to use them in re-amping. This is a brilliant way of getting effects on your guitars directly in the mix. For details on this technique, you can read this tutorial on recording distorted guitar.

When mixing guitars done with re-amping, there are only two effects that can be applied in the mix. These are panning and EQ. Panning guitars done with re-amp are the same with clean guitars. Feel free to experiment as to what sounds great for your mix. EQ can be done in similar settings as well.

Situation#2: Mixing overdubbed guitars

In the mix, the objective is to create layers of guitar sound. This can be accomplished by panning them cleverly in the mix. Supposing you are mixing with two rhythm guitars. Since this is an overdub take. There are a total of 4 guitar recordings that you are going to mix, see below:

Rhythm guitar 1:

1.) Overdub guitar 1 take 1 —- > mono 24-bits/44.1KHz
2.) Overdub guitar 1 take 2 —- > mono

Rhythm guitar 2:

3.) Overdub guitar 2 take 1 —- > mono 24-bits/44.1KHz
4.) Overdub guitar 2 take 2 —- > mono

a.) Panning, you can put them in different location in the stereo field to bring in some nice blending effect, some suggestions below:

1.) Overdub guitar 1 take 1 —- > 50% LEFT
2.) Guitar 1 take 2 —- > 50% RIGHT
3.) Guitar 2 take 1 —- > 85% LEFT
4.) Guitar 2 take 2 —- > 85% RIGHT

Experiment with different panning settings and decide which sound best for your mix. If you have additional guitar tracks, you can pan them to unoccupied location in the stereo field, for example:

5.) Overdub guitar 3 take 1 — > 100% LEFT (hard left)
6.) Overdub guitar 3 take 2 — > 100% RIGHT (hard right)

b.) Compression -if the guitar is recorded with even volume and dynamics. It can benefit very little from audio compression. If dynamics is a very important factor in the overall guitar mix, you might need to skip compression or only apply a small amount of compression. Refer to the compression settings for clean guitar for details.

c.) EQ -as usual guitars done with overdubs will have similar EQ as the clean guitars. But blending with other instruments in the mix are crucial (for example, with bass guitar, vocals, etc.). Since overdub guitar mixing consists of different layers of guitars, clarity is very important or else your mix will not sound great. Refer to this beginner guide on complete EQ settings to start when doing audio mixing to know the EQ settings for other important instruments in the mix.

d.) Reverb– now that you are dealing with different layers of guitars in the mix. It is easy to be tempted and apply the same amount of reverb to each track. You will be surprised that won’t translate to a great sounding mix. The best approach would be to apply different amounts of reverb to different guitar tracks.

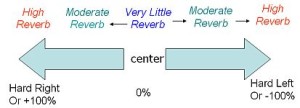

For those guitars that are panned closer to the center, it should have less reverb than those guitars that panned very far from the center. See the diagram below:

Panning and reverb

Panning and reverb

Situation#3: Mixing Solo or Classical Guitar

Classical guitar is intended to sound original and pure. If you are recording a solo guitar in a big live-sounding room. You won’t need to apply any effects on the mix. It is because the guitar sound is meant to be pure. Proper microphone placement could capture the natural reverberations of the environment so won’t need to apply reverb.

If you are recording the classical guitar using DI (not recommended), then you need to apply EQ and reverb (refer to the above tips) to make the sound captivating and lively. The primary reason is that when you are recording a classical guitar performance using DI method, the recorded sound is very dry.

Content last updated on June 21, 2012
